Ceramic Backup Tape- Specification

Introduction User Guide Specification

Ceramic Backing Plate



TC-10 Plate TC-10
TC-45,TC-60,TC-75 Plate TC-45,TC-60,TC-75
TC-Ø6,TC-Ø9,TC-Ø12 Plate TC-Ø6,TC-Ø9,TC-Ø12
TC-81,TC-82 Plate TC-81,TC-82
TC-400 Plate TC-400
TC-4145 Plate TC-4145
TC-12
TC-14
TC-14A
TC-14B
TC-14C
TC-30
TC-500
VB8067





Plate

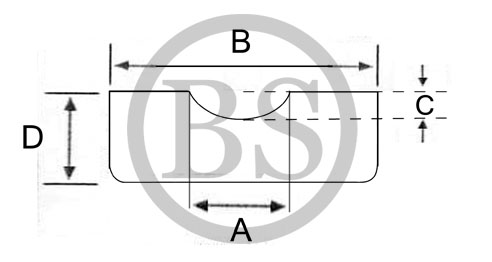

Type   \   Size

A

B

C

D


TC-10

6.0

26.5

1.0

5.5+0.5


TC-12

12.0

28.0

1.2

8.0


TC-14

14.0

30.0

1.2

8.0


TC-14A

14.0

27.0

1.3

8.0


TC-14B 14.0 30.0 0.6 8.0

TC-14C 14.0 30.0 1.2 8.0

TC-30

5.0

26.5

1.0

7.0


TC-81,TC-82

10

22 , 19

1.2

8 , 10


TC-400

5.5

16.0

--

5.5+0.5


TC-500

5.5

16.0

--

5.5+0.5


TC-4145

14+1

31+1

1.2

8+0.5


VB8067

12.0

27.0

1.2

8


TC-45,TC-60,
TC-75


Welding Angle:45°,60°,75°


TC-Ø6,TC-Ø9,
TC-Ø12


diamete:6mm,9mm,12mm
