Ceramic Backing Plank - User Guide

Introduction User Guide Specification

Ceramic Backing Plank





Ceramic Backing Plank - User Guide1

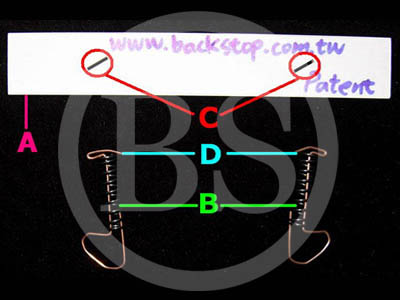

Components: A-the back of the Backing Plank; B-Coil Springs; C-Holes; D-Hooked Section (CO2 Weld Material)



Ceramic Backing Plank - User Guide2

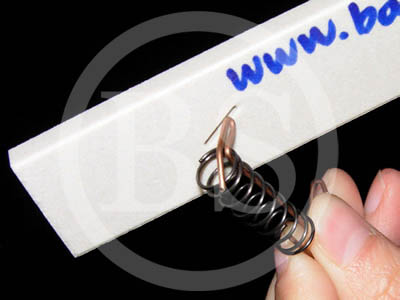

Step 1: Insert B into C from the back of the Backing Plank



Ceramic Backing Plank - User Guide3

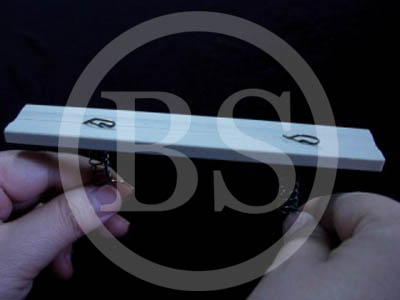

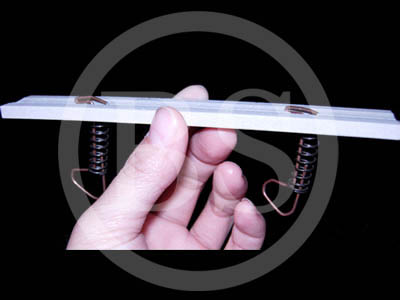

Step 2: Repeat Step 1, and then you will complete the combination of the Backing Plank



Ceramic Backing Plank - User Guide4

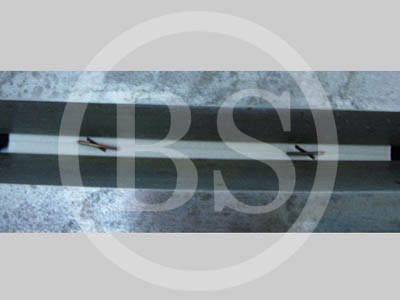

Step 3: Put the Backing Plank to the bottom sides of two steel plates



Ceramic Backing Plank - User Guide5

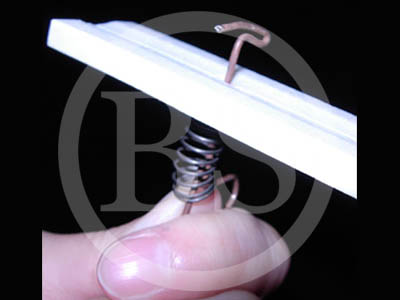

Step 4: Press B and turn around to make D perpendicular to the steel plates



Ceramic Backing Plank - User Guide6

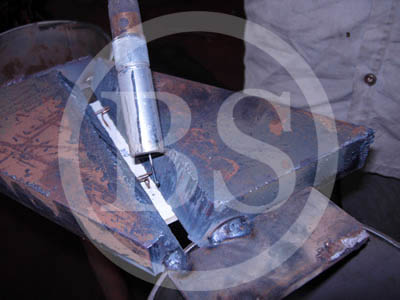

Step 5: Repeat Step 4, and then D will adhere to the steel plates, and they are perpendicular
