Ceramic Ferrule - Specification

Introduction User Guide Specification

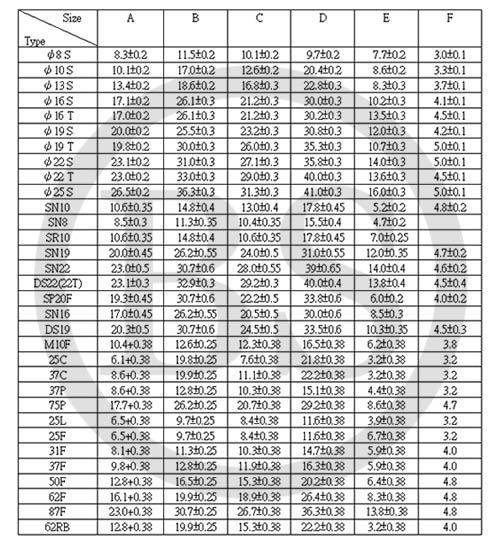

S:STANDARD TYPE T: THROUGH DECK Unit:m/m

Ceramic Stud Ferrule - Specification

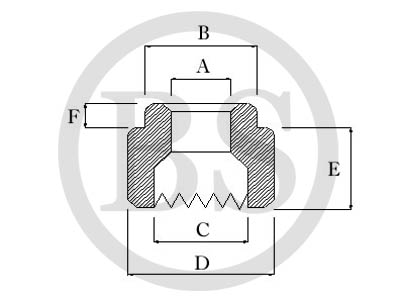

Note: Factors in A、B、C、D、E、F, the illus below

Ceramic Stud Ferrule - Specification1



Special Specification: BS-168

Ceramic Stud Ferrule - Specification2
